How Does Dujiangyan Irrigate Millions of Acres Without a Dam?

Dujiangyan is a 2,280-year-old irrigation system on Sichuan’s Min River that feeds roughly 1.6 million acres of farmland — with no dam, no gates, and no operators required. Built in 256 BC by Qin governor Li Bing, it uses the river’s own physics to divide, regulate, and deliver water across the Chengdu Plain.

Who Built Dujiangyan and Why?

Li Bing was the governor of Shu under the expanding Qin state. The Min River was vital for Qin’s boats and logistics, which made blocking it with a dam completely off the table. The Min also flooded destructively in wet seasons and ran too low for farming in dry ones — a problem that had plagued the region for generations.

Li Bing’s solution was to work with the river rather than against it. Instead of stopping the flow, he shaped the land around it so the water sorted itself automatically.

The Three Components That Make It Work

Dujiangyan operates through three interdependent structures, each performing a specific function without any mechanical intervention.

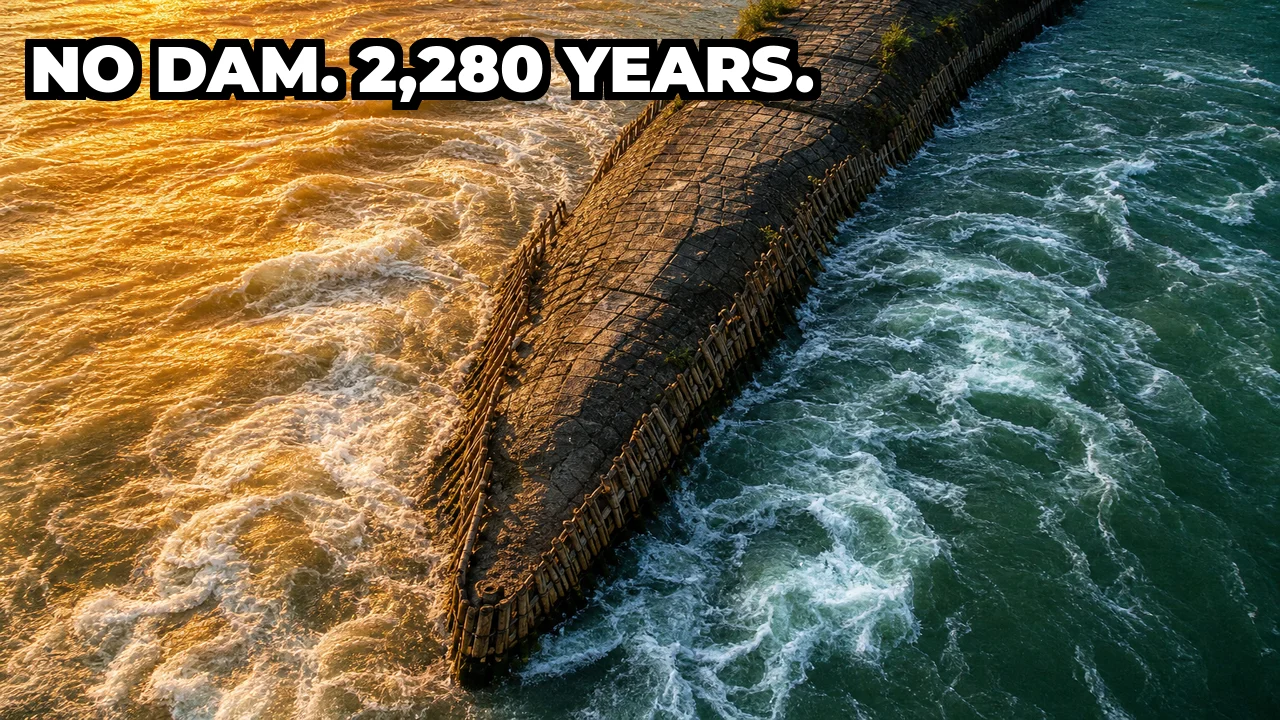

The Fish-Mouth Levee (Yuzui) is an artificial island shaped like the prow of a fish, splitting the Min River into an outer river and an inner irrigation channel. In the dry season, the channel geometry funnels roughly 60 percent of the river’s flow inward to supply the farms. When floods rise and the submerged shoal goes under, the ratio flips — about 60 percent spills outward, protecting the plain from inundation. The switch is entirely passive, governed by water depth and channel shape.

The Flying Sand Weir (Feishayan) is a spillway set at a precise height between the inner and outer channels. When the inner channel carries more water than the plain needs, the excess — along with the heavy silt that travels along the riverbed — spills back into the outer river. The weir’s design exploits the fact that silt-laden water hugs the bottom while cleaner water rides higher, naturally flushing sediment before it can clog the irrigation system.

The Bottle-Neck Channel (Baopingkou) is the most dramatic element. To deliver water from the inner channel onto the Chengdu Plain, Li Bing’s workers had to cut through a mountain. Iron tools alone were too slow, so they heated the rock face with fire and then doused it with cold water, using thermal shock to crack the stone open. The result was a channel 66 feet wide carved through solid rock — without a single explosive — and it remains the controlling inlet for the entire irrigation network today.

The Consequences Were Enormous

The Chengdu Plain transformed almost immediately. Its agricultural output became so legendary that the Chinese gave it a name still used today: the Land of Abundance. That surplus of food and resources directly fueled the Qin state’s military campaigns, and in 221 BC — just 35 years after Dujiangyan was completed — Qin unified China under its first emperor.

A modern sluice bridge was added in the 1970s, but the core system operates exactly as Li Bing designed it. UNESCO recognized Dujiangyan as a World Heritage Site in 2000.

Why No Dam Has Replicated It

Most large-scale irrigation projects in history have relied on dams to store and control water. Dams silt up, require constant maintenance, and can fail catastrophically. Dujiangyan has outlasted every dam built in the ancient world because it never tried to stop the river — it just gave the river a better direction to go. The physics Li Bing embedded into the landscape have required no re-engineering in over two millennia.
