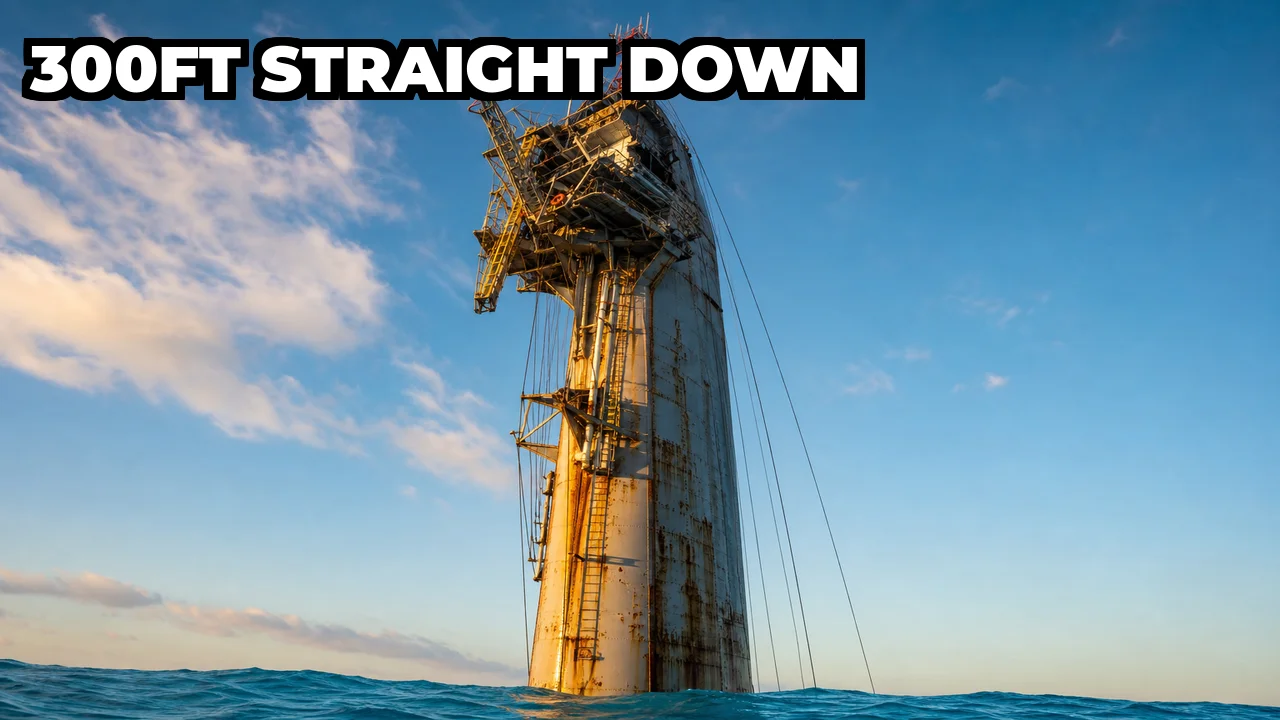

What Is R/P FLIP, the Ship That Deliberately Sinks Itself?

R/P FLIP — short for Floating Instrument Platform — is a 355-foot research vessel designed to deliberately flood its own stern, rotate 90 degrees, and leave 300 feet of its hull hanging straight down into the ocean. It is the only vessel of its kind ever built.

What Is R/P FLIP and Who Built It?

FLIP was constructed in 1962 for the Scripps Institution of Oceanography and the U.S. Office of Naval Research. At 355 feet long — longer than a football field — it was designed from the ground up to do something no ship before or since has been engineered to do: stand upright in the open ocean like a vertical spar buoy. It had no engines of its own. A tugboat towed it horizontally to its destination, and then FLIP took over from there.

How Does FLIP Actually Work?

Once on station, FLIP’s crew opens ballast valves and floods the stern tanks with seawater. Over the course of roughly 20 to 30 minutes, the stern slowly sinks and the bow rises. The entire platform rotates a full 90 degrees until it is standing nearly straight up — with only 55 feet of hull visible above the waterline and 300 feet hanging silently below the surface.

That submerged hull is why FLIP existed. Below the turbulent wave zone, the deep ocean is relatively calm. While a conventional research ship pitches and rolls in heavy swells, FLIP barely moves. Scientists reported that even in significant storms, the platform remained almost perfectly stable — making it ideal for capturing acoustic, biological, and physical oceanographic data that ordinary vessels simply could not collect.

The Engineering Problem Nobody Talks About

Rotating the hull was the easy part. The harder problem was that every single fixture inside the vessel had to function in both orientations — horizontal when being towed, and vertical when on station.

The solution was meticulous and, in some cases, genuinely strange. FLIP was fitted with two complete sets of toilets: one designed for horizontal use, one for vertical. Toilet seats were hinged to swing 90 degrees. Showerheads were bent at right angles so they pointed in the correct direction after the flip. Bunks, workbenches, and instrument mounts were all engineered around the same problem. When FLIP stood upright, the walls became the floors and the floors became the walls — and the crew had to be ready for it.

What Did FLIP Actually Discover?

Over its 60-year operational life, FLIP contributed to research in underwater acoustics, wave dynamics, water temperature gradients, and marine biology. Its stability allowed scientists to deploy sensitive instruments — hydrophones, current meters, and sensors — that would have been rendered useless by the motion of a conventional ship. Much of what we understand today about how sound travels through the ocean — critical for both submarine detection and whale communication research — has roots in data collected from FLIP’s vertical hull.

The End of a One-of-a-Kind Platform

R/P FLIP was retired in 2023 after more than six decades of service, having survived storms, equipment failures, and the simple passage of time. No replacement has been announced, and no similar vessel has ever been built. It remains the most unusual research platform in the history of oceanography — a ship that only worked by half-sinking itself, staffed by scientists who learned to walk on what used to be the wall.
