How Did Ancient Greeks Dig a Tunnel from Both Ends and Meet in the Middle?

The Tunnel of Eupalinos on the Greek island of Samos, built in the 6th century BC, was dug simultaneously from both ends of Mount Kastro using geometry alone — no instruments, no communication between crews — and the two headings met almost perfectly in the middle, making it the first tunnel in recorded history known to have been planned and executed this way.

What Is the Tunnel of Eupalinos?

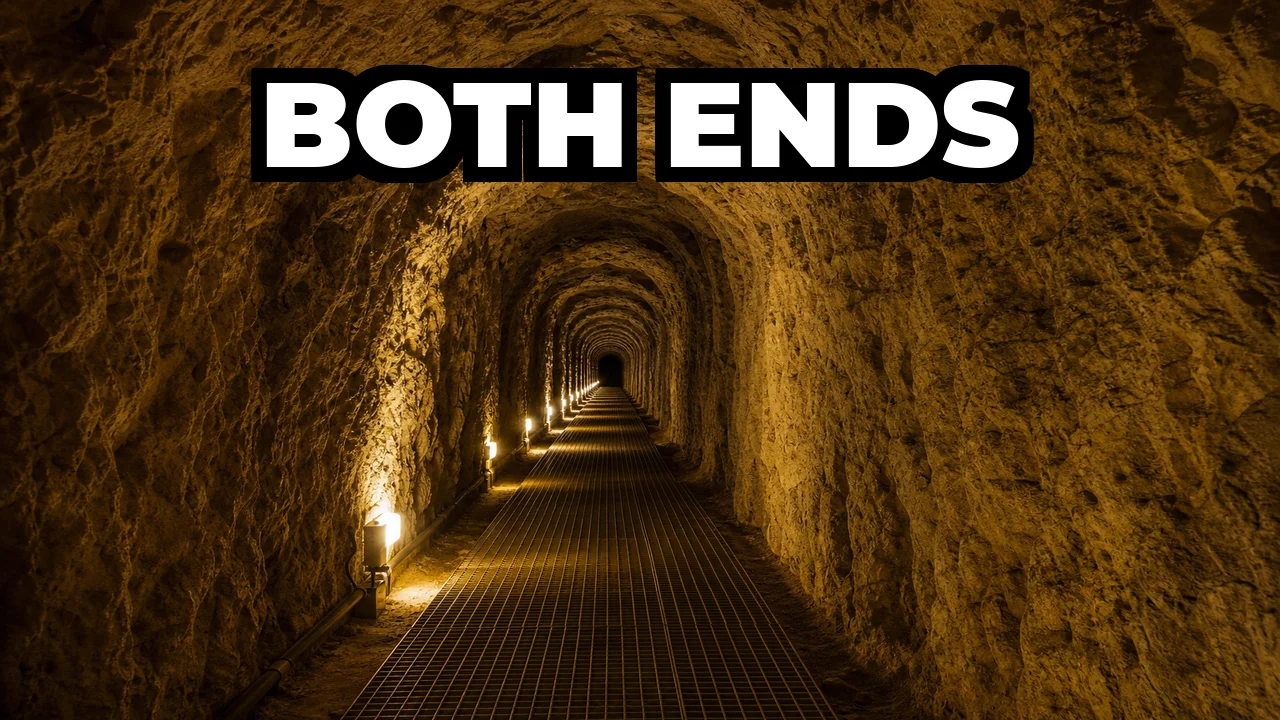

The Tunnel of Eupalinos is an ancient Greek aqueduct tunnel running 3,399 feet (roughly 1,036 meters) through Mount Kastro on the island of Samos. It was engineered by Eupalinos of Megara to carry fresh water from a spring on the north side of the mountain to the ancient city of Samos on the south side. The mountain stood directly in the way, and routing the water pipe around it wasn’t an option — an exposed surface channel could be cut by enemies during a siege. Going through the rock kept the water supply hidden and protected.

How Did Eupalinos Align Both Crews?

No blueprint survives, but decades of archaeological fieldwork have produced a leading explanation. Eupalinos almost certainly staked a line of sighting poles over the summit of Mount Kastro to fix the positions of both entrances and establish a shared heading for each crew. He then transferred the elevation — the critical factor for a water-carrying tunnel — by running water-filled leveling channels around the hillside contours before a single chisel touched the rock. This gave each crew a target direction and a target depth, set from the surface before tunneling began.

What Are the Doglegs in the Tunnel?

As each crew approached the center of the mountain, Eupalinos built in a deliberate safeguard. One crew bent its heading to the left; the other bent to the right. This widened the corridor each team was cutting into, guaranteeing that the two galleries would intersect even if the alignment had drifted slightly over hundreds of feet of blind excavation. The result was not a flaw — it was engineering prudence. Those deliberate kinks, or doglegs, are still visible in the rock today, and they are among the clearest pieces of evidence for how the alignment problem was managed.

What Did Herodotus Say About It?

The Greek historian Herodotus, writing in the 5th century BC, mentioned the tunnel explicitly in his Histories, naming Eupalinos of Megara as the engineer and describing it as one of the greatest building works in the Greek world. This makes the Tunnel of Eupalinos one of the very few ancient engineering projects we can attach to a named individual, and Herodotus’s account is the earliest written record connecting it to its builder.

How Long Was the Tunnel in Use?

Water flowed through the tunnel via clay pipes laid in a channel cut beneath the tunnel floor, and this system remained in operation for over a thousand years before the city declined and the tunnel was abandoned and eventually forgotten. European explorers traced its course in the 1850s, and systematic excavation began in 1882. The tunnel is now a UNESCO World Heritage Site and is open to visitors.

Why Does the Tunnel of Eupalinos Matter?

It is the first tunnel in recorded history known to have been planned with geometry and dug from both ends simultaneously. That distinction — not just the scale, not just the survival — is what sets it apart. Two crews with hand tools, working in darkness through solid rock, separated by a mountain, converged on a meeting point calculated entirely in advance. The fact that they succeeded, and that the evidence of how they succeeded is still readable in the stone, makes this one of the most remarkable demonstrations of practical mathematics from the ancient world.
